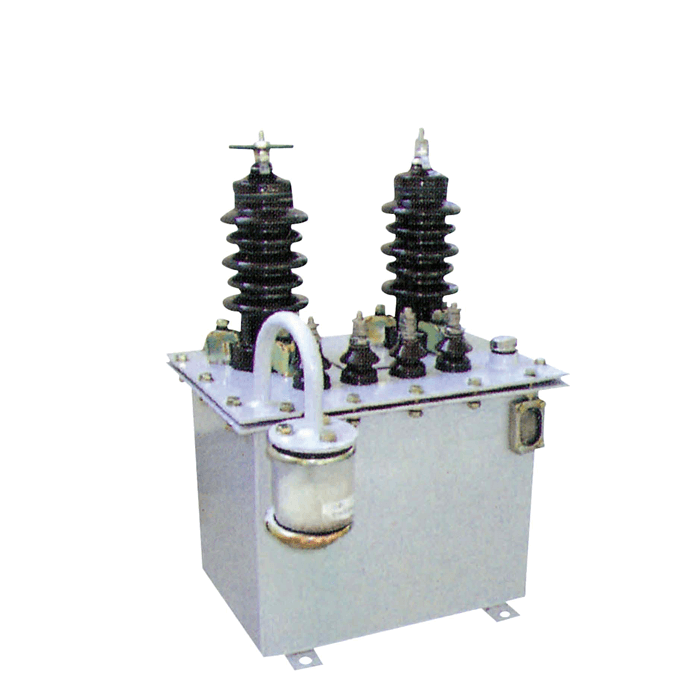

The current transformer is a steel box oil-immersed, indoor outdoor dual-use device, for frequency 50 hz system, make using of the electric current, electric energy measurement and relay protection.
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: LJW-10/35
Power: 10/35KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

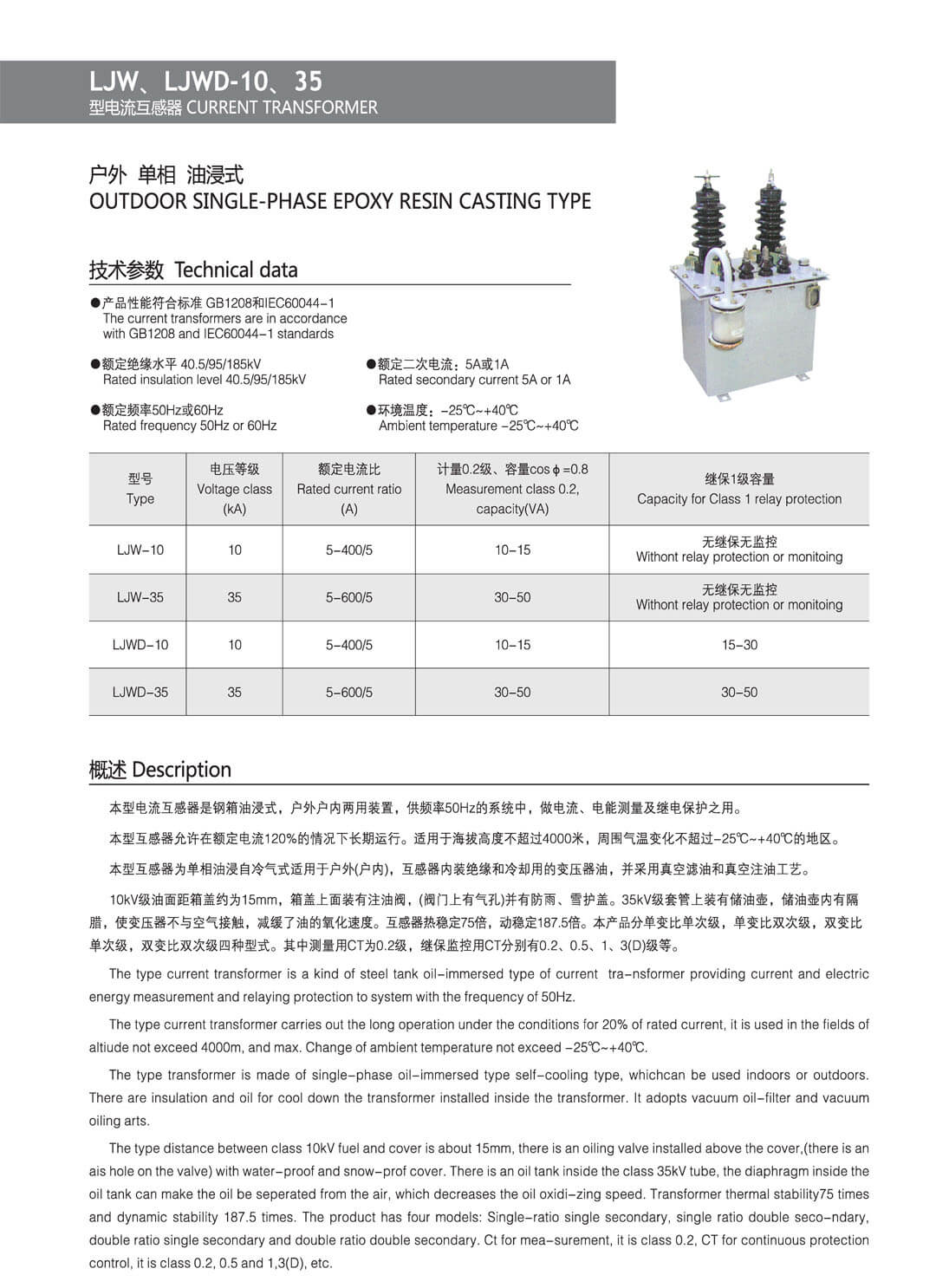

This type transformer allows long running at 120% of the rated current situation. Applicable elevation height less than 4000 meters, the surrounding temperature does not exceed 25 ℃ to + 40 ℃.The transformer is single phase oil-immersed since air conditioning is suitable for outdoor (indoor), transformer inner insulation and cooling in the transformer oil, and USES the vacuum and vacuum filter oil filling process.The oil level of level 1 okv about 15 mm from the lid, on the box cover is equipped with oil valve, valves (pores) have rain, snow cover. 35 kv level on the casing is equipped with store oil pot, oil storage in POTS with wax, the transformer is not exposed to air, reducing the speed of the oil oxidation. Transformer 75 times thermal stability, dynamic stability of 187.5 times. This product divides the single variable than subprime, single variable than subprime, double variable than single secondary, double variable than double secondary four types. Including measurement with CT with a magnitude of 0.2, the monitoring with CT respectively 0.2, 0.5, 1, 3 (D) level, etc.
current transformer adopts the structure of epoxy resin vacuum casting full-seal transfixion
used for measurement of current and electric energy as well as relay protection in the AC eircuit of rated frequeney sOHz and rated voltage 10kV.
This current transformer is of whole sealing casting insulation pillar type
Category:Switchgear&HVCTBrand:JGGYElectricModel:LA-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofPya
Category:Switchgear&HVCTBrand:JGGYElectricModel:LAZBJ-10Power:10KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LCZ-35Power:35KVFOBPort:Ningbo/ShanghaiTermsofPy
Category:Switchgear&HVCTBrand:JGGYElectricModel:LDBJ9-40Power:40KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LDJ1-35Power:35KVFOBPort:Ningbo/ShanghaiTermsofP
Category:Switchgear&HVCTBrand:JGGYElectricModel:LDJ-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofPy
Category:Switchgear&HVCTBrand:JGGYElectricModel:LFS-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofPy
Category:Switchgear&HVCTBrand:JGGYElectricModel:LMZB3-10Power:10KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LQJ-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofPy
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZJ8-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofP
It's similar to power transformer and also used to transformer voltage or current in the circuit.
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZB7-35Power:35KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZB9-24Power:24KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZBJ4-35Power:35KVFOBPort:Ningbo/ShanghaiTermso
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZBJ9-12Power:12KVFOBPort:Ningbo/ShanghaiTermso
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZBJ9-35QPower:35-40KVFOBPort:Ningbo/ShanghaiTe
current transformer is of epoxy resin vacuum casting fully-enclosed support-type
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZJ-10QPower:10KVFOBPort:Ningbo/ShanghaiTermsof
A steel box oil-immersed, indoor outdoor dual-use current transformer
be used along with ZW32 series high voltage vacuum circuit breaker.
Outdoor 35KV medium voltage current transformer
outdoor full closed support type resin casting insulated current transformer
Pillar type fully enclosed outdoor pouring insulation current transformer
This type of transformer can be divided into single and double changes; In a double change to exchange, to meet the needs of different grid capacity.
35KV outdoor single phase epoxy resin casting type current transformer
