GN24-12 indoor HV disconnect switch applies to power system of rated voltage 12KV, AC 50Hz, it is used to break and make circuit under no-load. there are additional pollution abatement type, high altitude type and electrified display.
Category: Switchgear & High Voltage Disconnector
Brand: JGGY Electric

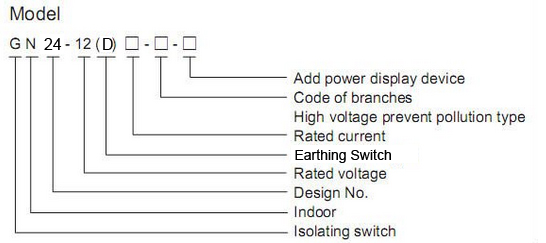

Model: GN24-12
Power: 12KV/ 630A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
GN24-12 model indoor HV disconnect switch applies to power system of rated voltage 12KV, AC 50Hz, it is used to break and make circuit under no-load. there are additional pollution abatement type, high altitude type and electrified display.

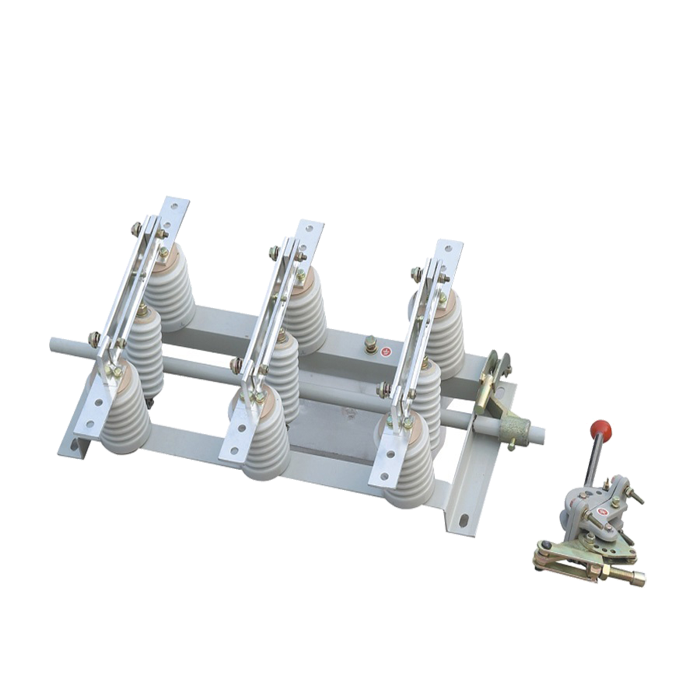

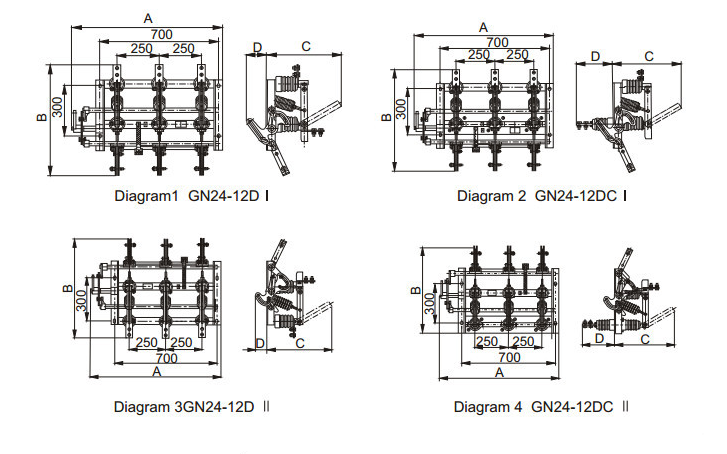

This series of isolation switches is a three-pole type and consists of a chassis, a shaft, a lever, a porcelain pillar insulator, a knife and a terminal board. The shaft is placed on the base frame, and three pairs of levers are welded on the shaft. The lever is made of a porcelain insulator and a knife necklace. The shaft protrudes from the base frame, any of which can be connected to the operating mechanism.
Working Environment
1.The altitude: 1000m~3000m
2.The ambient temperature: -30°C~40°C
3.The relative humidity of air: monthly≤90°C,daily≤95°C
4.The wind pressure: ≤700pa(wind speed 34m/s)
5.Amplitude: earthquake degree 8
6.Environment degree: degree III
Cannot be use on the condition of the danger of fire and blast, heavy pollution, chemical etching, strong shake etc.

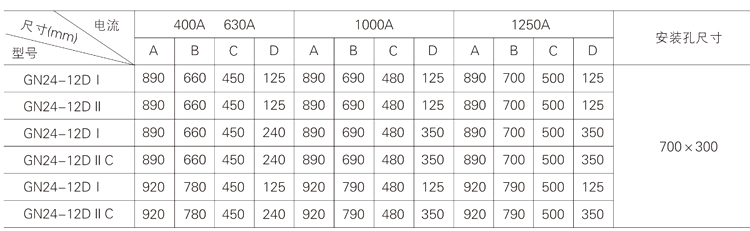

Project | Unit | Parameter | ||||||||
Rated Voltage | KV | 12 | ||||||||
1 min power frequency withstand voltage | To ground | KV | 42 | |||||||
Fracture | KV | 48 | ||||||||
Lightning impulse withstand voltage (peak) | To ground | KV | 75 | |||||||
Fracture | KV | 85 | ||||||||
Rated frequency | Hz | 50 | ||||||||
Rated current | A | 400 | 630 | 1000 1250 | ||||||
Rated short-time withstand current | KA | 16 | 20 | 16 | 20 | 25 | 20 | 25 | 31.5 | |
Rated peak withstand current | KA | 40 | 50 | 40 | 50 | 63 | 50 | 63 | 80 | |
Rated short-time withstand current duration main knife / ground knife | s | 4/2 | ||||||||
Creepage distance | mm | 300~380 | ||||||||
Mechanical life | Times | 2000 | ||||||||
