Product overview

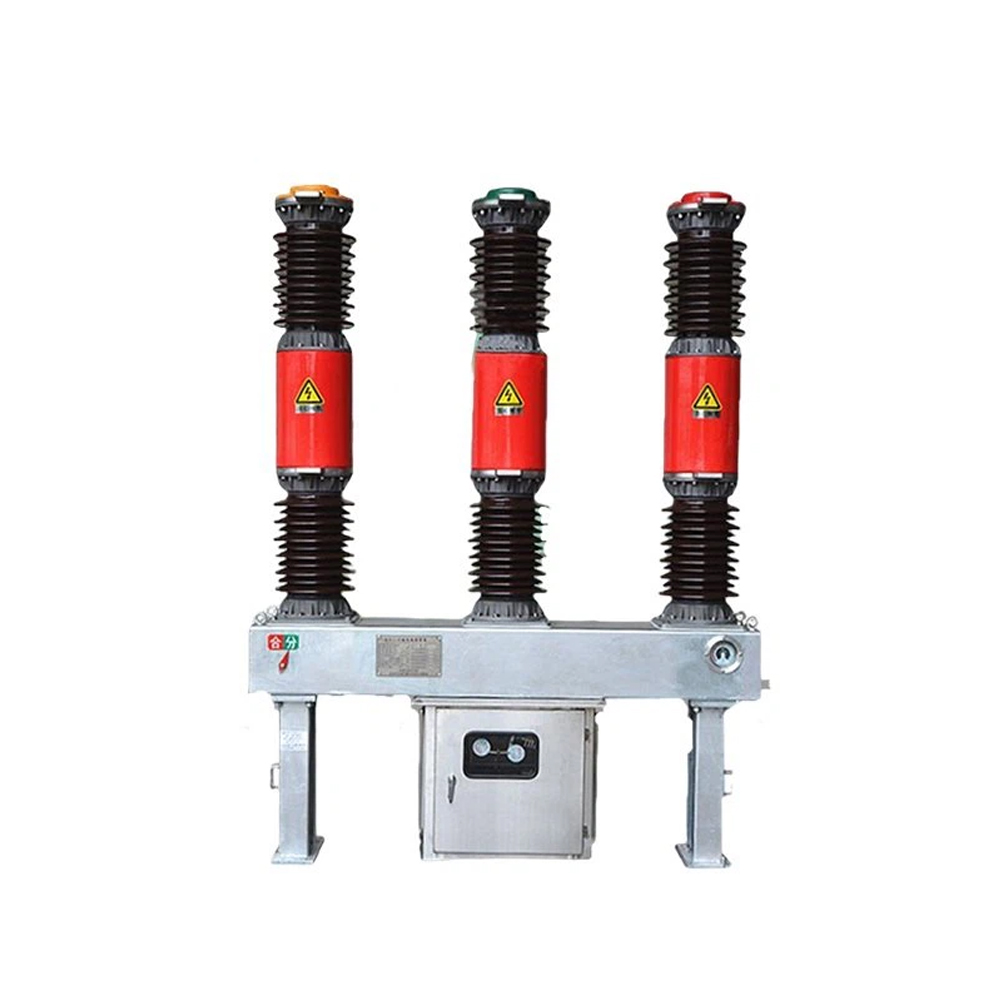

LW16-40.5 side-mounted and center-mounted types are used for outdoor devices in AC 50Hz three-phase power systems. They are used for control and protection in industrial and mining enterprises, power plants and substations. This product can be operated frequently and can be used as a contact circuit breaker and switch. Capacitor bank, reactor bank circuit breaker. The built-in current transformer can be used for measurement and protection, and can directly replace the SW2-35 oil-less circuit breaker. Equipped with a filter bracket, it can replace various types of oil-rich circuit breakers. It is an ideal oil-free circuit breaker in the 35kV power system. device.
Use environmental conditions
1. Altitude: no more than 3000m;
2. Ambient temperature: -25C~+40C;
3. Wind speed: no more than 34m/s;
4. Pollution level IV, porcelain sleeve creepage distance: >1255mm;
5. A place free of flammable substances, explosion hazards, chemical corrosion and severe vibration.
Note: When the above requirements are exceeded, the user can negotiate with the manufacturer.
