Product overview

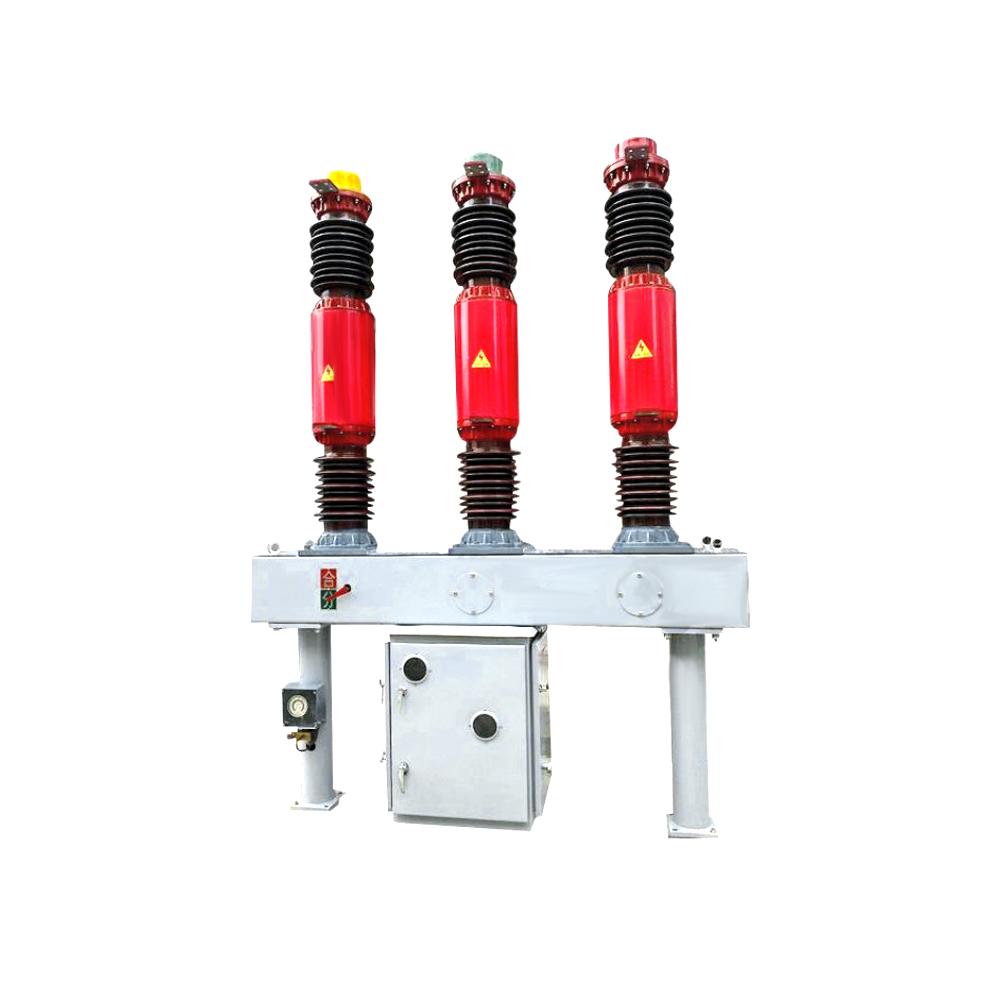

LW8A-40.5 outdoor porcelain column high-voltage sulfur hexafluoride circuit breaker is suitable for power systems with AC 50Hz and rated voltage 40.5kV. It can be used as a control and protection device for the power system and can also be used as a contact circuit breaker. The circuit breaker is also equipped with a current transformer for measurement and protection.
The circuit breaker uses sulfur hexafluoride gas as the insulating and arc-extinguishing medium. The circuit breaker has a single-post single-break structure for each pole, adopts the self-energy arc extinguishing principle, and is equipped with a CT14 spring operating mechanism and three-phase mechanical linkage.
This product complies with GB1984 and IEC62271-100 standards
Environmental conditions of use
1. Sunshine: 1000W/m2
2. Relative humidity: daily average: no more than 95%; monthly average: no more than 90%
3. Wind speed: no more than 34m/s;
4. Earthquake resistance: horizontal acceleration: 0.250g; vertical acceleration: 0.125g;
5. Pollution level: Level III (25mm/kV):
6. Ice thickness: 10mm (when the wind speed is not greater than 15m/s);
7. Protection level: IP5XW
