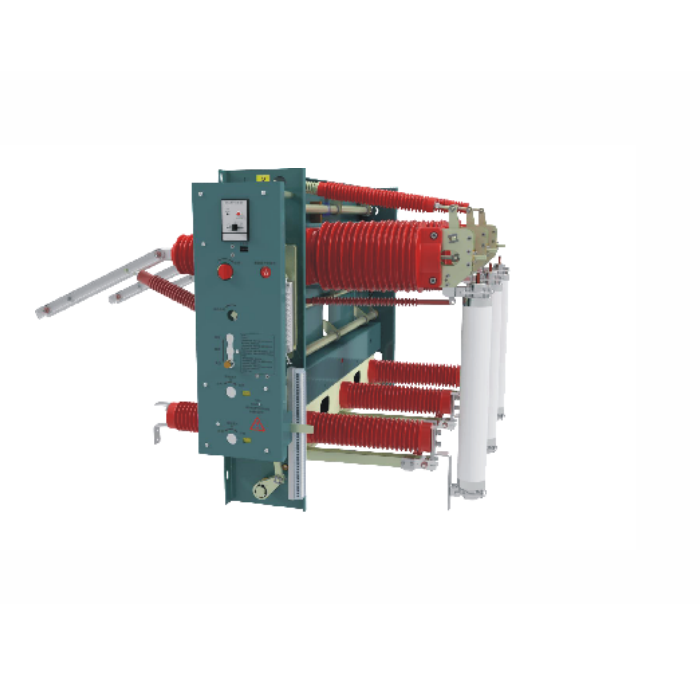

FN7-12D 12KV LBS indoor Medium voltage load break switch with earthing switch
ABB NAL series 12KV LBS medium voltage load break switch for RMU similar as

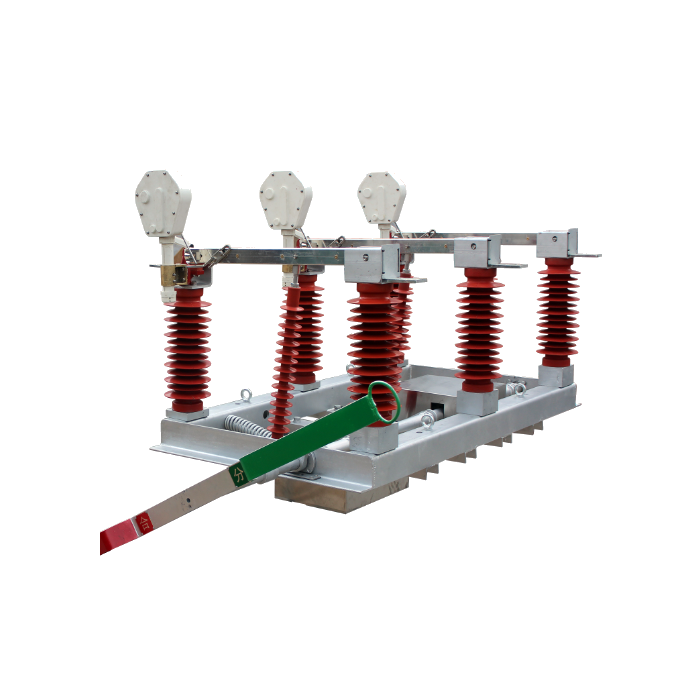

12KV MV Outdoor Off-Load overhead line isolator disconnector LBS load break switch
As a protection and control unit for power grid equipment and industrial and mining enterprise power design
Mainly used for opening closing the power system load current, overload current and short - circuit current
12KV MV VCB outdoor high voltage vacuum circuit breaker with controller
What is load break switch?
Load break switches are devices used to open an electrical circuit by isolating the source from the consumer. Whether they are manual, motorised or with a trip function, these devices ensure the on-load making, breaking and safety disconnection of low-voltage electrical circuits.

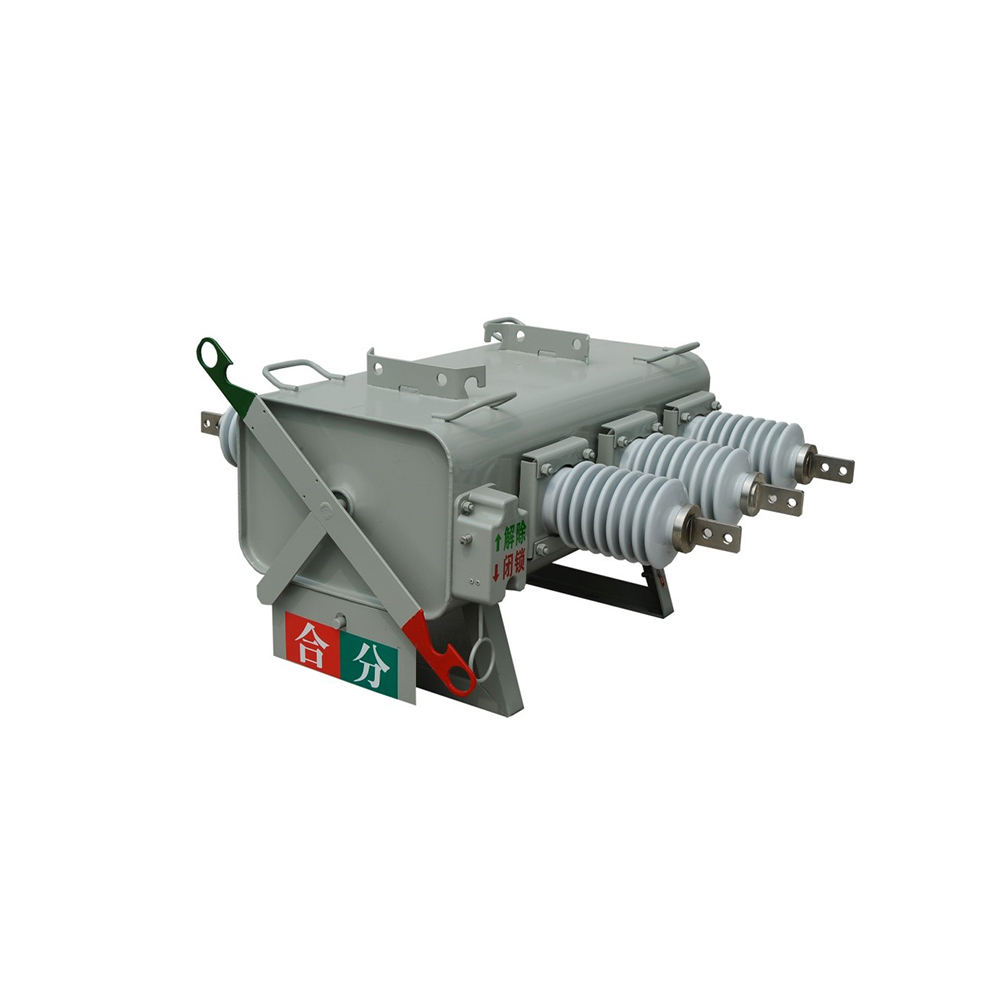

The FLW36-12/24/40.5 outdoor column-mounted negative switch is suitable for breaking and closing load currents and overload currents in power systems rated 12/24/40.5kV, rated current 630A, 50/60Hz.

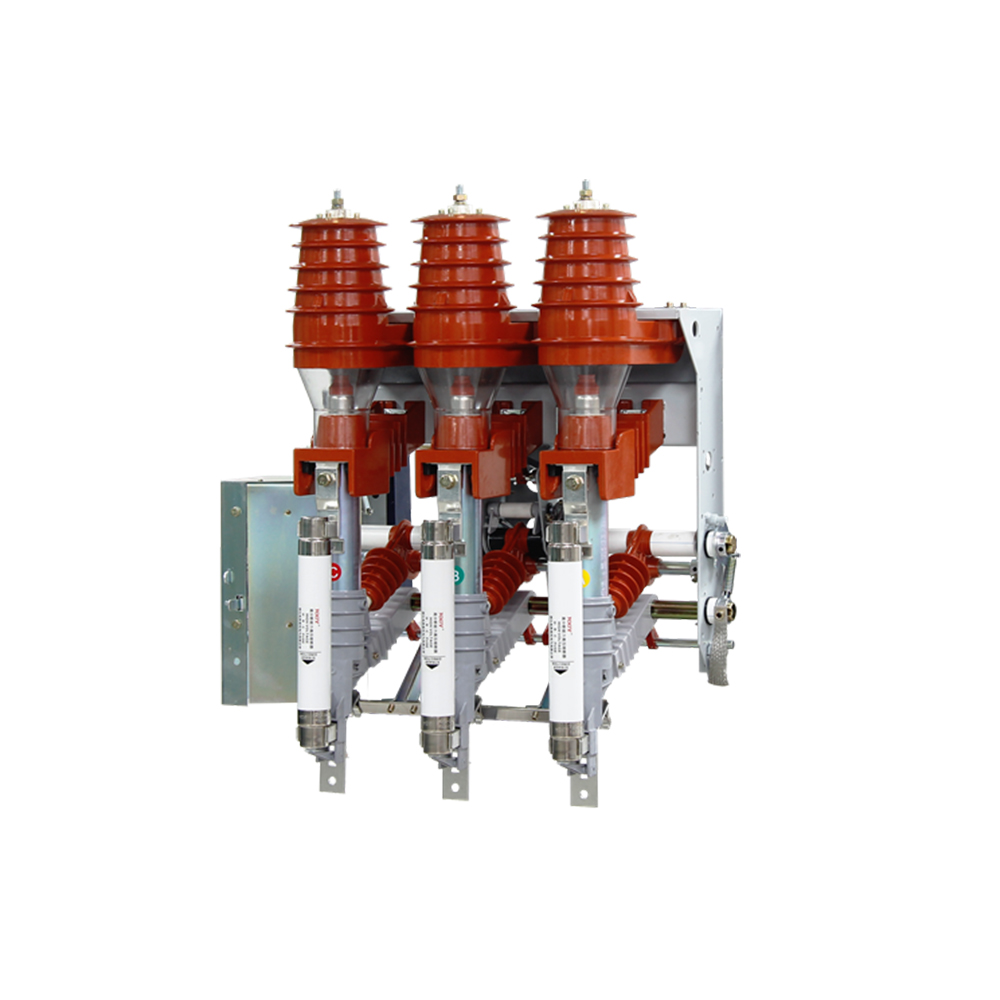

FCR21-40.5RD (Embedded pole) indoor high voltage ac vacuum load break switch + fuse combination, suitable for AC 50Hz, rated 40.5kV power system, Photovoltaic, New energy, solar energy,
FN7-12D 12KV LBS indoor Medium voltage load break switch with earthing switch
ABB NAL series 12KV LBS medium voltage load break switch for RMU similar as
12KV MV Outdoor Off-Load overhead line isolator disconnector LBS load break switch
Russia ВНА-10 Indoor 10KV Load break switch with earch switch VNA-L-10/630-20zp
outdoor AC high voltage isolate switch (hereinafter referred to as load break switch)

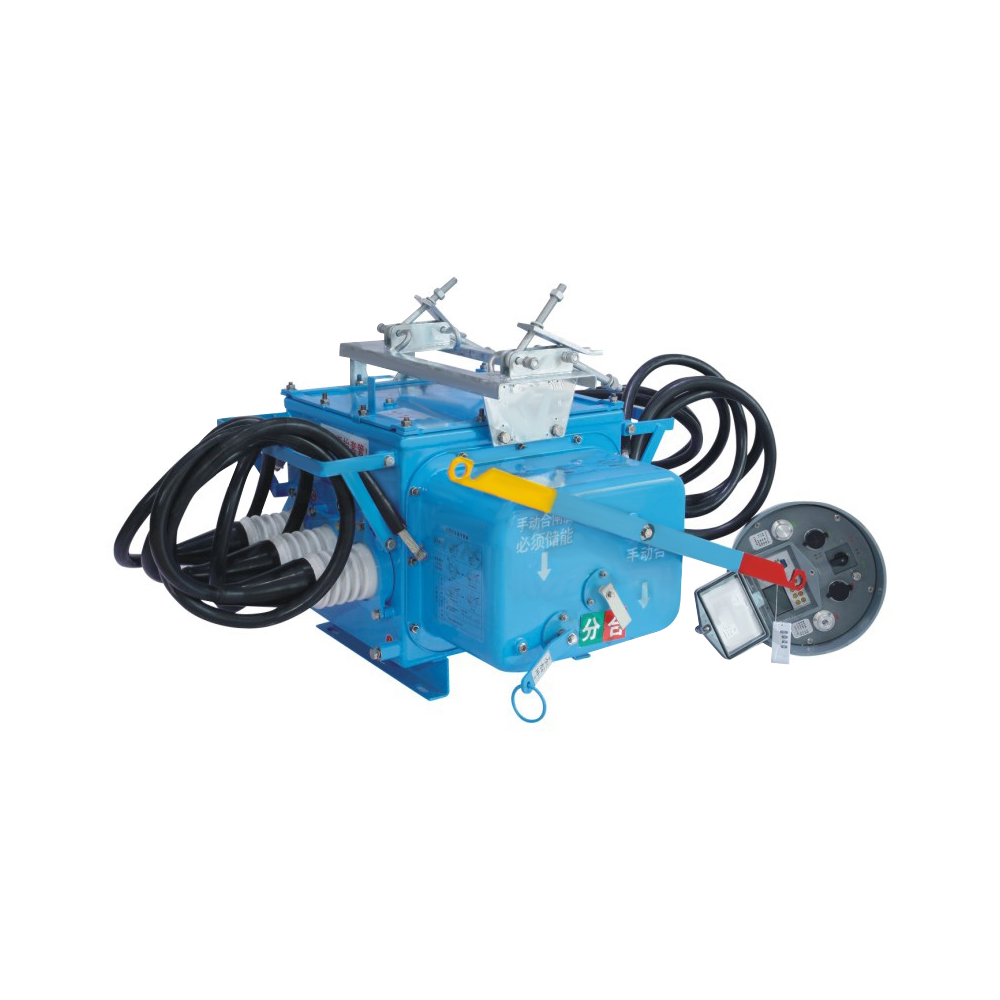

FZW28-12 series outdoor AC high-voltage boundary vacuum load switch is suitable for outdoor three-phase AC power distribution systems with a rated voltage of 12KV and a rated frequency of 50Hz. It is used to open and close load currents and close short-circuit currents.

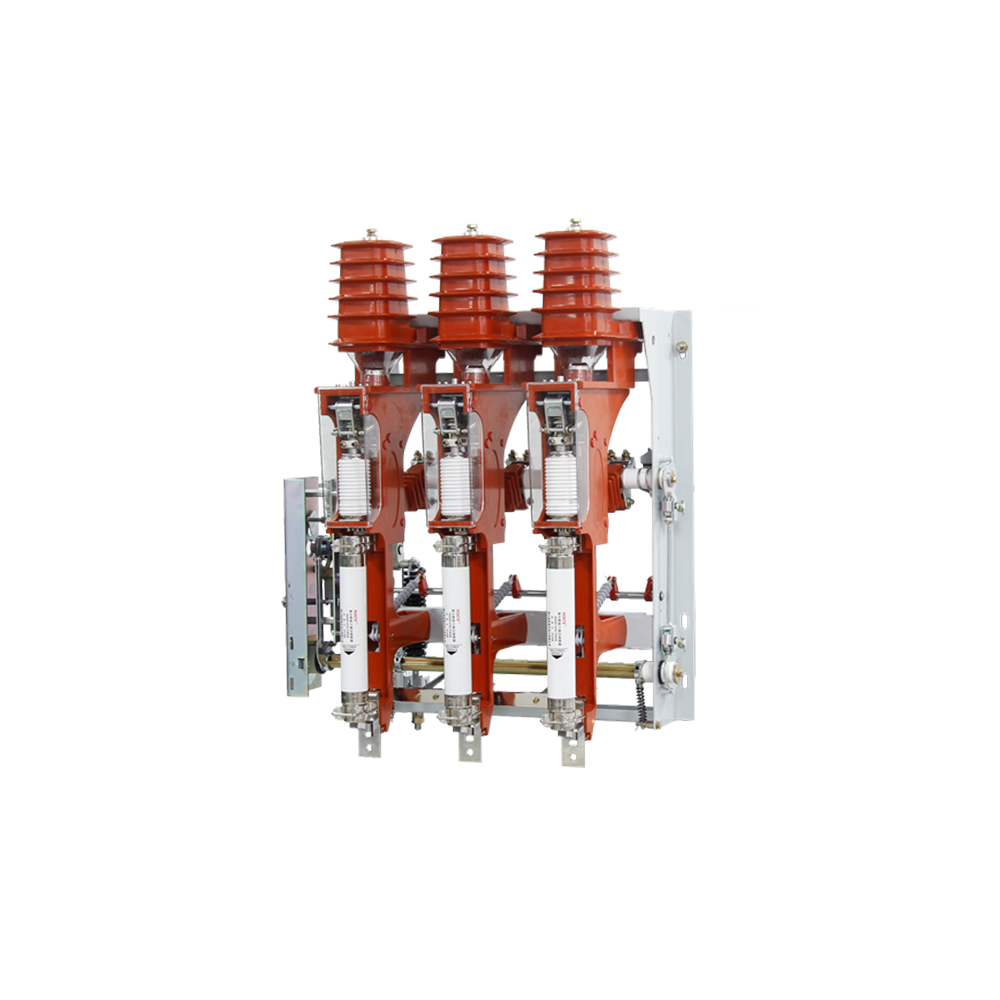

"FKN12A-12D series compressed air load switch can switch load current and overload current FKRN12A-12D series compressed air load switch-fuse combination appliance can switch load current, overload current, and break line short-circuit current"
FZN25, JLFZRN25 vacuum load switches and combined electrical appliances are suitable for load control and short-circuit protection in three-phase AC 50Hz ring network or terminal power supply and industrial electrical equipment.
Advantages of Load break switch
Load break switch, generally comes with the spring mechanism for switching ON & OFF the supply, however, option with vacuum circuit breaker is also available. Of course, option with Vacuum circuit breaker is costlier. Choice between these two totally depends on the customer. Load break switch with vacuum circuit breaker is more reliable option.
Load break switch with spring mechanism are generally provided with Fuse protection. And hence, every time a fault occurs, fuse needs to be replaced. On the other hand, if you are using Load break switch with vacuum circuit breaker, we only needs to Turn On the breaker.
Load break switch are also provided with the Earth Switch, which helps in grounding the charges, which can be present even after the switch is turned off.
What is the difference between isolator and load break switch?
Accordingly, the Circuit breakers have both while the Isolator or LBS has only breaking capacity. Isolator therefore used to isolate/disconnect/break load. To be switched on only under no load. ... In simple way the Load Break Switch used to cut off healthy circuits or to break / disconnect the load.
Difference between disconnector, circuit breaker and load break switch?
Isolator / disconnector. Only suitable for opening at no-load. If you open the switch on load, you'll draw an arc. Cheap.
Load-break switch. Can be opened and closed under load. Cannot make or interrupt fault current.
Circuit breaker. Can be opened and closed under load. Can make and break fault current. Expensive. Generally have heavy, spring-driven mechanisms that operate very forcefully and wear out quickly. Not meant to be operated frequently.
Contactor. A kind of load break switch that is meant to be frequently opened and closed under load, i.e. to control a direct-on-line motor. (Circuit breakers aren't rated for frequent operation - attempting to use a circuit breaker as a contactor will result in rapid wear and failure. See "Utilisation Category".)
Fuse-switch - a switch combined with a fuse. Comes in off-load or load-break types. Common in overhead distribution systems, in the form of the "expulsion drop-out fuse" which can be operated using a hook on the end of a long stick. Provides short-circuit and overload protection.
Fused contactor - A fuse in series with a contactor. The fuse protects the contactor against fault currents which might damage the contactor, by welding its contacts together. (See: "Type 2 co-ordination".) Common for control of HV motors.
