This VCB with the controller can meet the requirements of distribution automation system,and can raliably and effectively complete the recloser function of traditional. lt uses the mature type sealing structure, internal filled with SF6 gas, has good sealing performance.
Category: Switchgear & High Voltage VCB
Brand: JGGY Electric
Model: ZW20
Power: 12KV/ 630A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

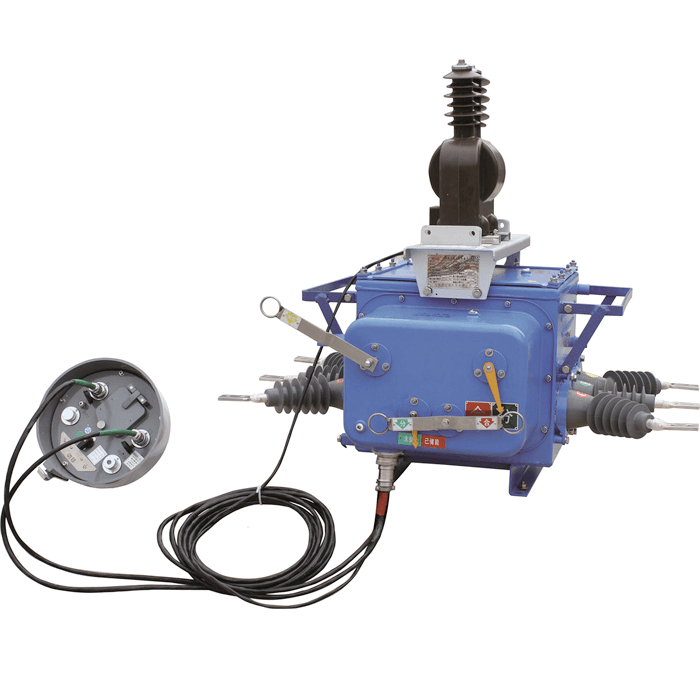

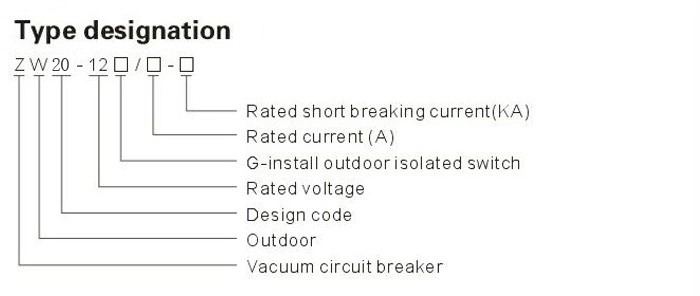

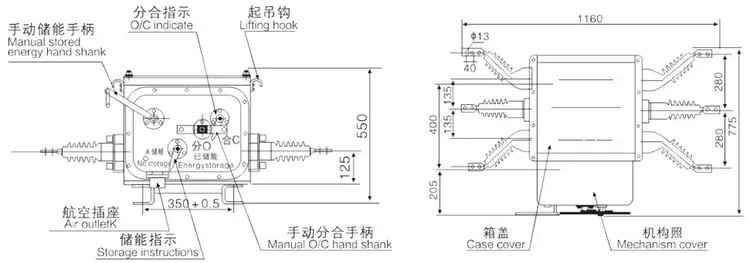

ZW20A-12 outdoor column high-voltage vacuum circuit breaker for the outdoor high - voltage switchgear rated voltage 12KV, three - phase AC 50 Hz, Mainly used for opening closing the power system load current, overload current and short - circuit current. Suitable for substation, industrial and mining enterprises and urban distribution network protection and control, especially suitable for frequent operation places and automation of distribution network.This product with the controller can meet the requirements of distribution automation system,and can raliably and effectively complete the recloser function of traditional. lt uses the mature type sealing structure, internal filled with SF6 gas, has good sealing performance. which is not affected by the external environment. is a kind of free maintenance products. The spring operating mechanism with straight moving the main transmission chain and multistage release system, reliability is high, the circuit breaker pole.
Use environment
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
Item | Unit | Data |
Rated voltage | kV | 12 |
1 Min P.F Withstand Voltage | kV | 42 |
1 Min P.F Withstand Voltage-wet (Phase To Earth, Outer Insulate) | kV | 34 |
Lightning Impulse Withstand Voltage (peak) | kV | 75 |
Rated Current | A | 630/1250 |
Rated Power Frequency | Hz | 50*60 |
Rated Short-circuit Breaking Current | kA | 12.5/16/20 |
Rated Operating Sequence | O-0.3s-CO-180s-CO | |
Rated Short-circuit Breaking Time | Times | 30 |
Rated Short-circuit Making Current (peak) | kA | 31.5/40/50 |
Rated Withstand Current (peak) | kA | 31.5/40/50 |
Rated Short-time Withstand Current (4s) | kA | 12.5/16/20 |
Rated Short-circuit Duration | s | 4 |
Mechanical Life | Times | 10000 |
Rated Operating Voltage And Rated Voltage Of Auxiliary Loop | v | 220 |
Rated Current Of Over-current Tripper | A | 5 |

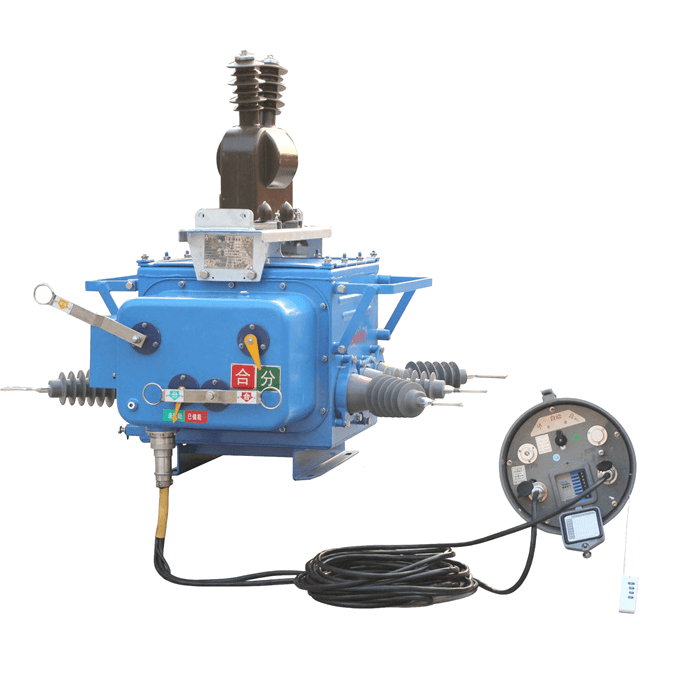

ZW32-12 outdoor medium voltage vacuum circuit breaker recloser controller 12KV by motor
with controller, distribution automation system,and can raliably and effectively complete the recloser function of traditional.
Outdoor 12KV MV VCB power system,mainly used for breaking,closing urban areas 10KV grid load current,load current and short circuit current.
Mainly used for opening closing the power system load current, overload current and short - circuit current
12KV MV VCB outdoor high voltage vacuum circuit breaker with controller
As the power grid's breaking switch, it can realize the distribution network automation after installation of the controller.
basic functions such as breaking and closing load current, overload current and short circuit current
used as 10kv /11KV /12KV substation outlet switches and three-phase AC electric power system.
the circuit breaker and the isolating switch can be combined to form a "combined circuit breaker"
