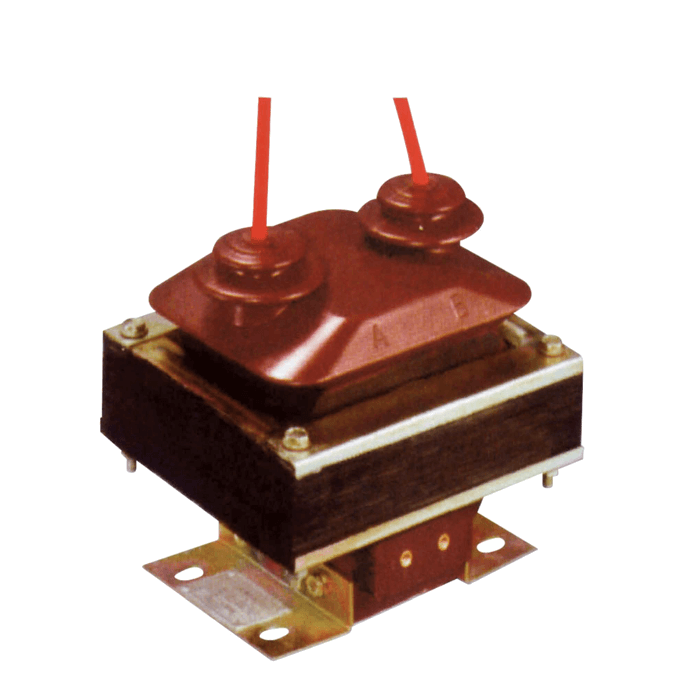

This voltage transformer is epoxy resin casting semi-closed products. For rated frequency 50 hz. Rated voltage is 10 kv and below outdoor vacuum breaker ZW8 for operation in the power supply and voltage measurement
Category: Switchgear & HV PT
Brand: JGGY Electric
Model: JDZ20-6/10
Power: 6/10KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

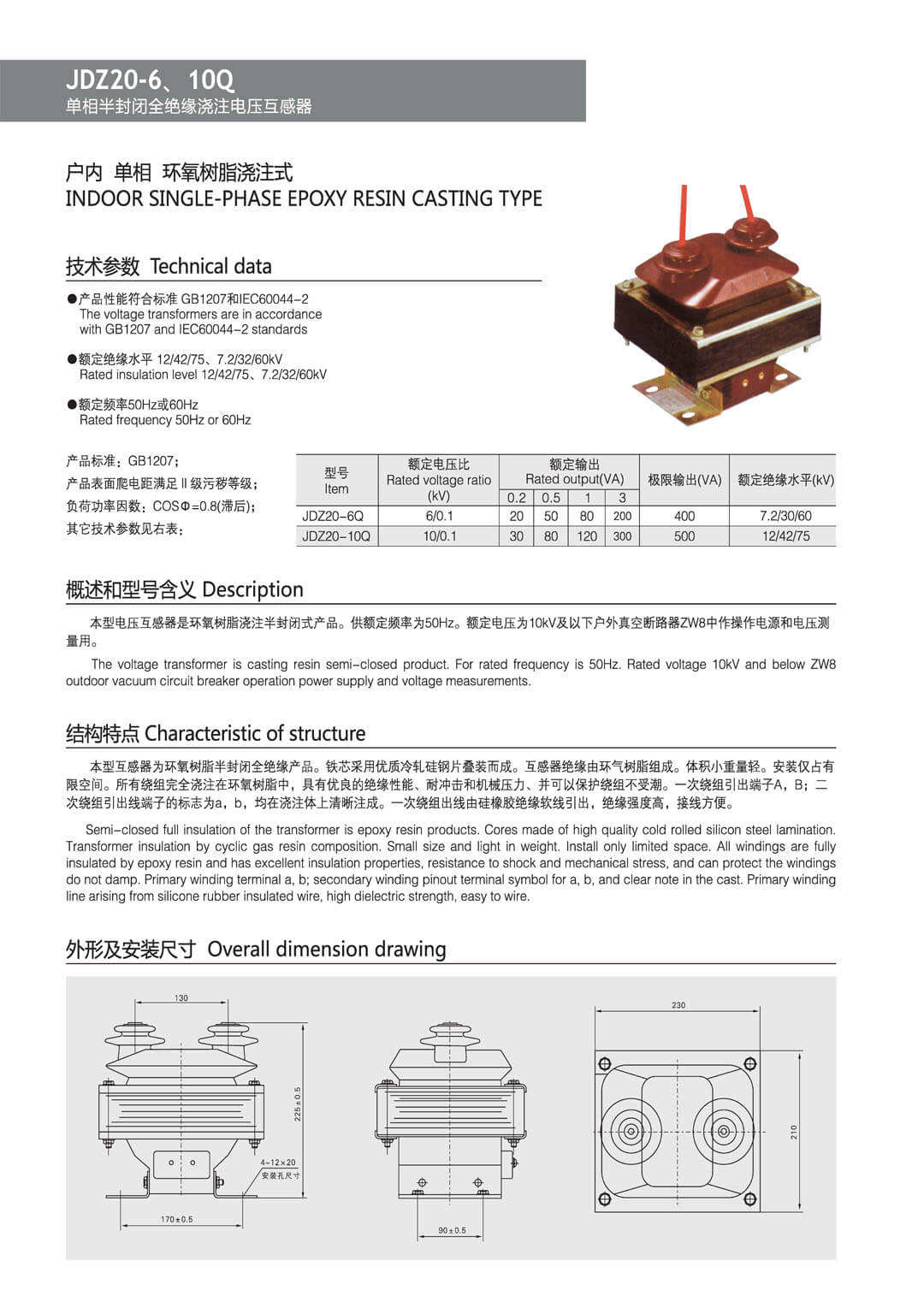

The voltage transformer is semi-closed fully insulated epoxy resin products. Iron core is made of high quality cold rolled silicon steel sheet pile is installed. Transformer insulation consists of ring gas resin. Small volume light weight. Install only limited space. All windings fully pouring in epoxy resin, with excellent insulation properties, impact resistance and mechanical stress, and can protect the winding be affected with damp be affected with damp. A winding leading-out terminal A, B; The sign of secondary winding wire terminals for a, b, all qing gradually into injection on the casting body. A winding wire by the soft silicone rubber insulated wire leads, high dielectric strength, convenient connection.
