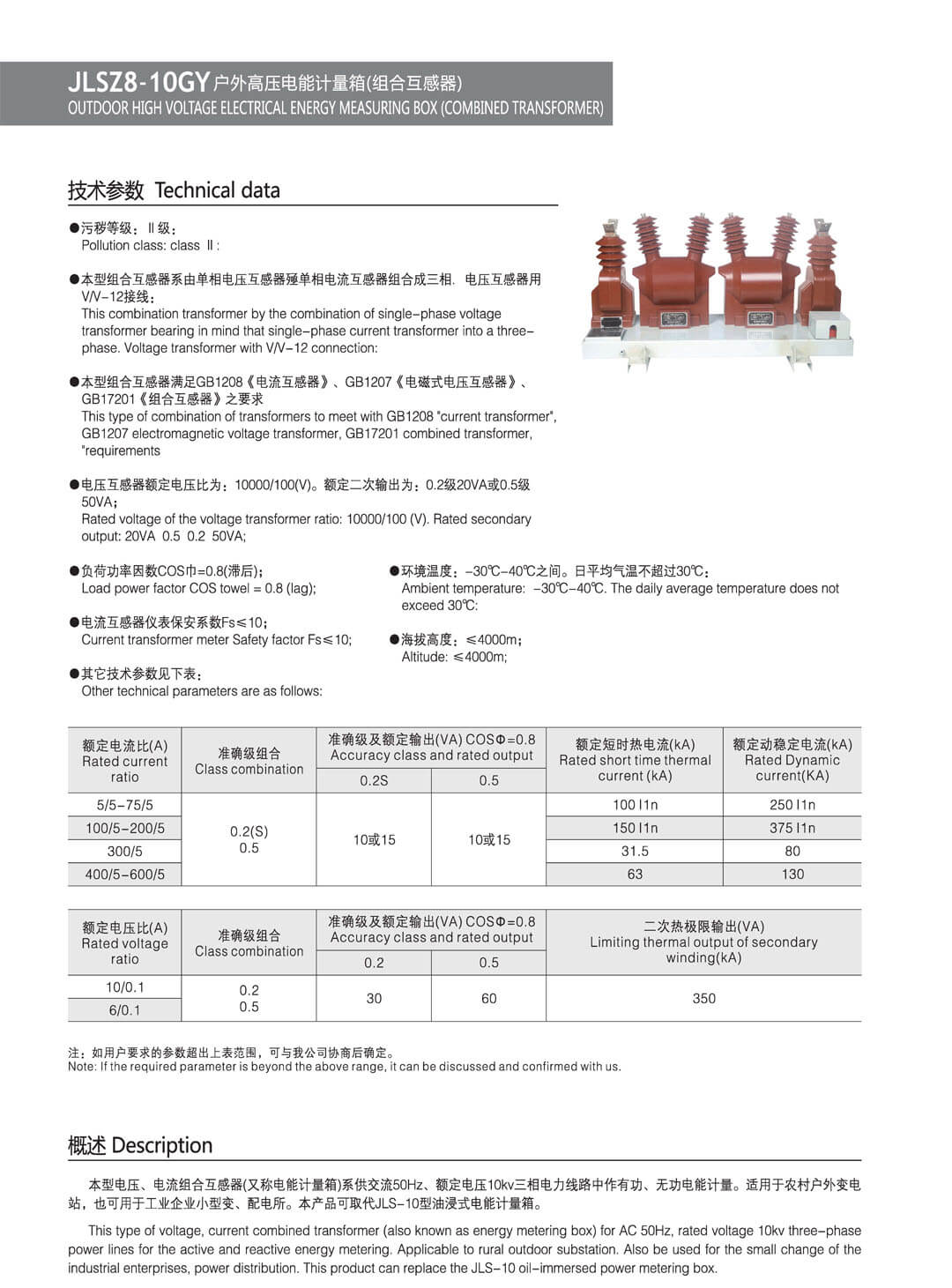

The voltage and current combination transformer (also known as the electric energy metering box) system for ac 50 hz, rated voltage 10 kv three-phase power lines in the active and reactive power energy metering. Suitable for rural outdoor substation, small change, power distribution can also be used for industrial enterprises. This product can replace the JLS - 10 oil-immersed power metering box.
Category: Switchgear & HV PT
Brand: JGGY Electric
Model: JLSZ8-10GY
Power: 10KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

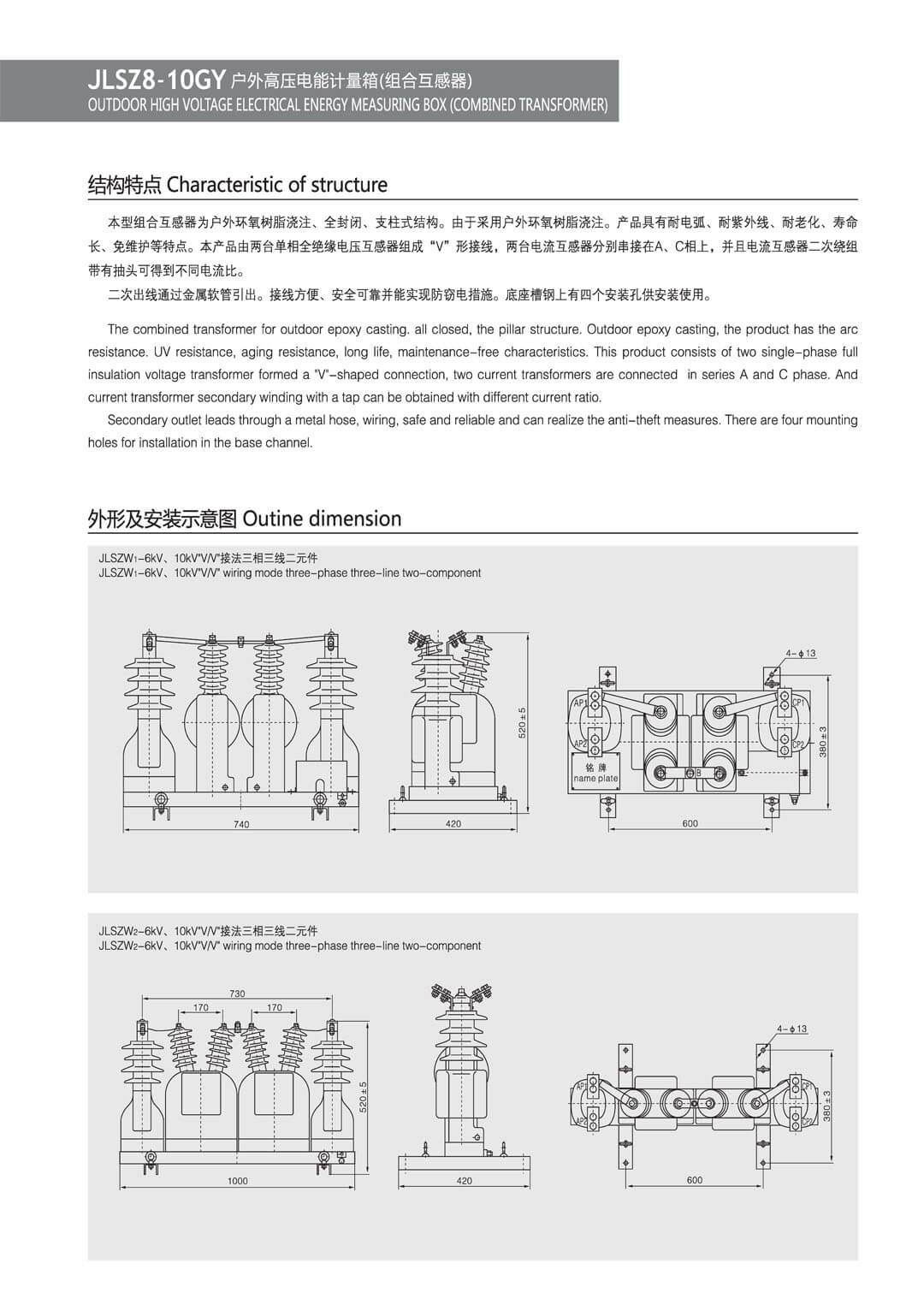

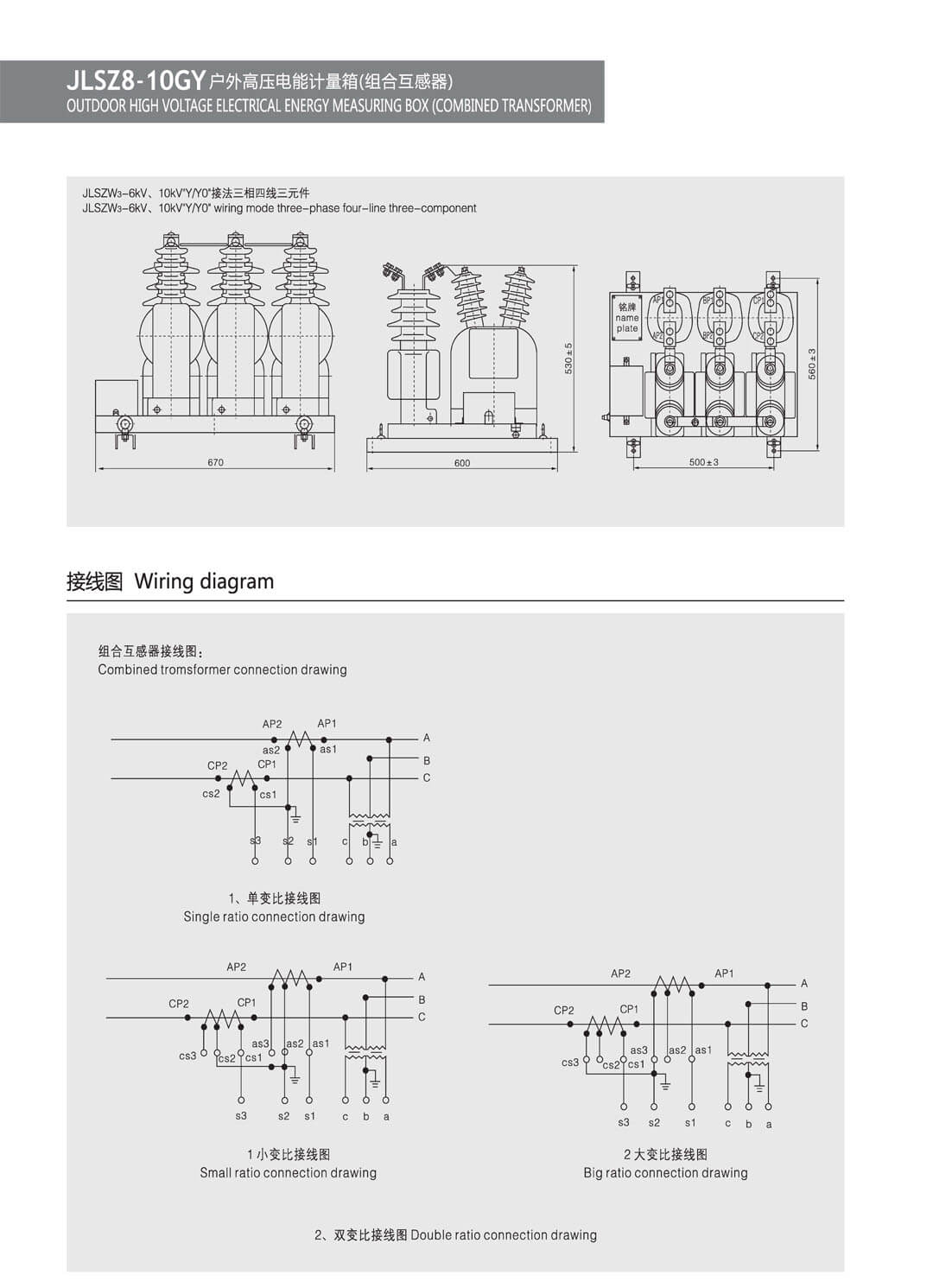

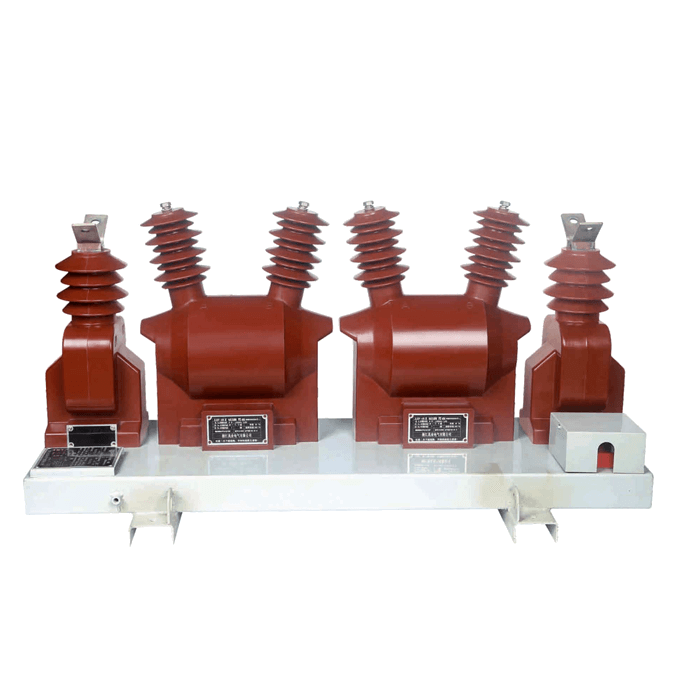

Outdoor epoxy resin casting, the combined transformer is fully enclosed, pillar type structure. As a result of outdoor epoxy resin casting. Products have electric arc resistance, ultraviolet resistance, aging resistance, long service life, maintenance free, etc. This product is composed of two sets of single phase full insulation voltage transformer "V" shaped connection, two current transformer concatenated on A and C, respectively, and the current transformer secondary winding with tap can get different current ratio.Secondary outlet through the metal hose to elicit. Connection is convenient, safe and reliable and can realize preventing electricity-stolen measures. On the base of channel steel has four mounting holes for installation.
